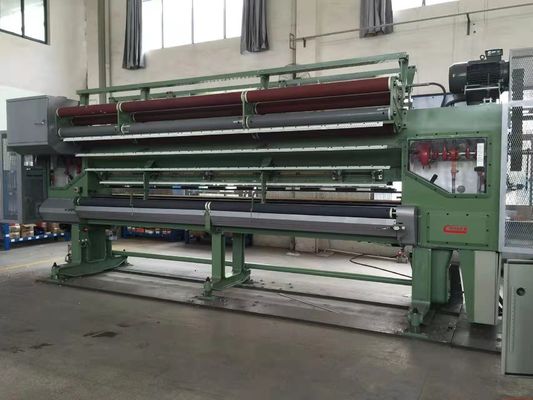

Artificial turf Grass Making Machine For Making Tufting 4m NSK mechanical drive part 10-35 stitch per 10cm

  • Artificial turf Grass Making Machine For Making Tufting 4m NSK mechanical drive part 10-35 stitch per 10cm
  • Artificial turf Grass Making Machine For Making Tufting 4m NSK mechanical drive part 10-35 stitch per 10cm
  • Artificial turf Grass Making Machine For Making Tufting 4m NSK mechanical drive part 10-35 stitch per 10cm
  • Artificial turf Grass Making Machine For Making Tufting 4m NSK mechanical drive part 10-35 stitch per 10cm
Place of Origin CHINA
Brand Name GREEN TRIP
Certification SGS ISO ROHS
Model Number 3/8 Making machine
Minimum Order Quantity 1
Price NEGOTIATION
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Details
Voltage 380V, 220/380V, 380V 50HZ 3Phase(Customized), 220v 380v, 380/220V Power(w) 150KW, 78KW, 50-120kw, 228KW, 150KW/100KW
Condition NEW Gauge 3/8,5/8
Leave a Message
Product Description

Artificial turf Grass Making Machine For Making Tufting 4m NSK mechanical drive part 10-35 stitch per 10cm 0



5/8供货范围及指标5 / 8)supply scope and index):

1.1 机架采用全铸造机架,机械传动部分均采用日本NSK轴承,轴采用45#钢调制磨光轴.(The body Frame is full cast frame, mechanical drive part all made of NSK bearings of Japan brand, adopts 45# steel modulation polishing shaft)

草坪割绒机有效幅宽4.1m (Effective width of lawn mowing machine is 4.1 m)

直线单针结构针梁, (Straight single needle structure needle beam)

变频可调马达, (Variable frequency adjustable motor)

手动可调床板和锁紧系统,(Manually adjustable bed plate and locking system)

可调冲程, (Adjustable stroke)

绒高范围 5/8 20mm-60mm ,(Pile Height range: 20mm-60mm)

机械速度 400-500 RPM, (Machine speed: 400-500 RPM)

针迹范围10-35/10cm; (Stitch Length: 10-35 stitch per 10cm)

1.2一套单面双伺服导纱系统.(Include 1 set of One side double servo yarn-guiding system

1.3一套双伺服底布喂入系统.(Include 1 set of Double servo backing control system)

1.4 按4.1m 配置的258件国产针,钩,刀,叉.针,钩,刀,叉各20件备用,刀架备用2个 .(Include 258pcs homemade needles, hooks, knifes, forks according to 4.1 configuration. And 20pcs needles, hooks, knifes, forks for each, 2pcs spare knife rest for spare use)

1.5 2* 15 KW 4级 主电机2个, (2pcs of 2* 15, KW, class 4 main motors)

1.6 启动控制柜,软启动/停止,高位停车,故障显示,电子计长,配置前拉绳开关,前光电开关,PLC及触摸屏采用汇川.

(Start control cabinet, soft start/stop, High Parking, Fault indication, meter counter, Configure front pull switch, front photoelectric switch, PLC and touch screen all using Inovance)

1.7 集纱板一块.(1pc of Yarn collecting plate)

以上项目为簇绒机主机,合计价格为人民币:670000元.(The above project is the tufting machine mainframe, the total price is RMB: 670000 yuan.)

1.8 258位双头纱架一座,双层底布架及摆布装置.200KG尼龙穿纱管.(1 pc of 258 head double yarn frame, double layers bottom cloth frame and handle device. 200KG nylon yarn wearing pipe)

以上项目为辅助设备,锭子位,穿纱管等
